Homeowners frequently have to remove ice maker from Samsung refrigerator models to release jams, prevent leakages, do a deep cleaning, or get ready to replace it. First, it must be safe: disconnect the refrigerator, turn off the water supply, and have a towel to wipe any drips.
What should be avoided is any force that breaks the plastic mounts or breaks the wiring harness and water line, with brackets, covers, or connectors. When there is a lot of ice formation, ragged wiring, or continuous leaking, stop and consider scheduling a refrigerator repair service to prevent further damage and safety risks.

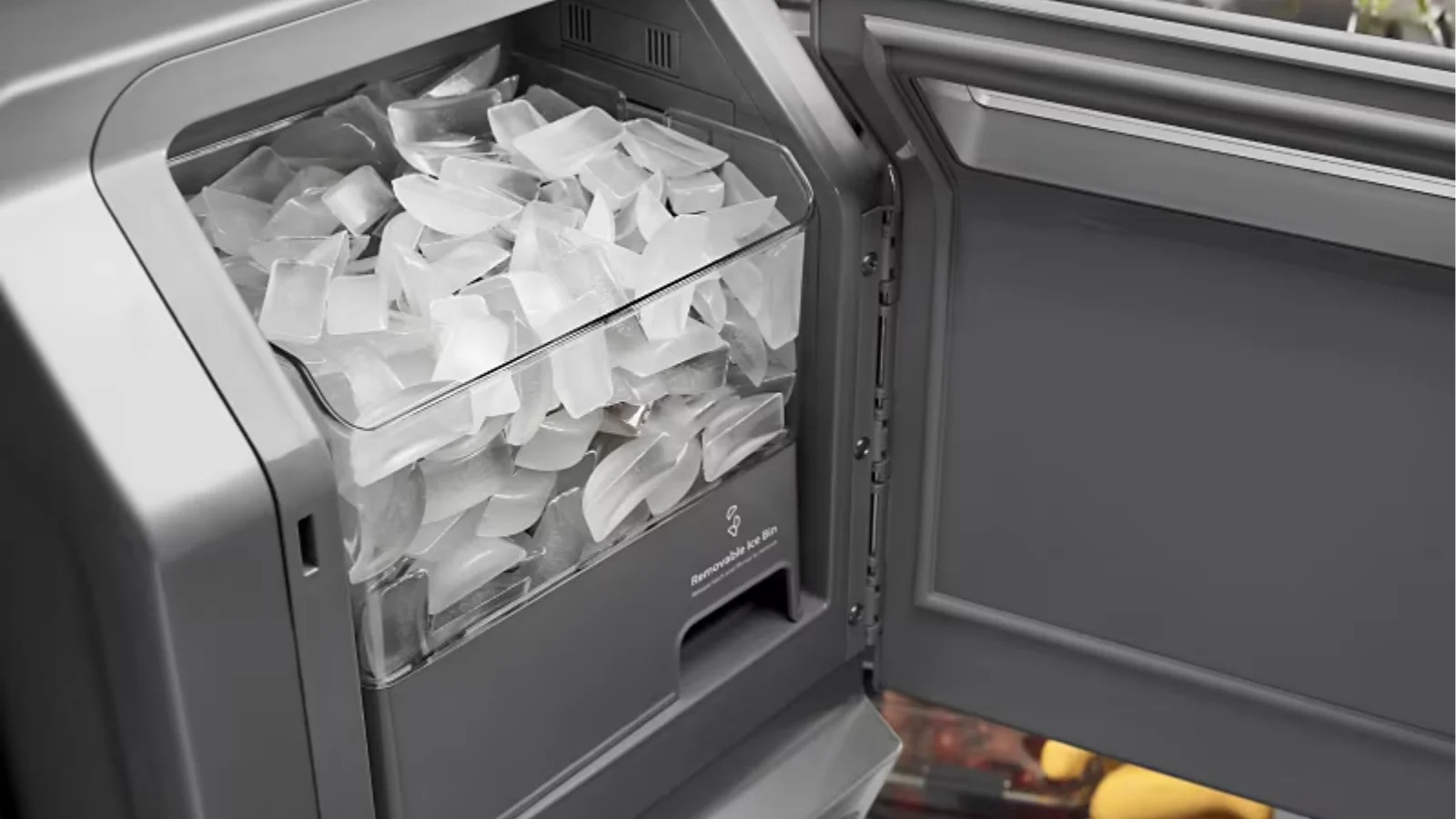

When Removing the Ice Maker Makes Sense
The ice maker will normally need to be removed once the performance problems continue to recur or when you are about to swap the unit. The usual triggers are excessive amounts of ice, frequent jamming, internal leakage in the freezer, or the indicator that the motor is malfunctioning.
Make sure you find out what model your Samsung fridge is before making any disassembly choices, as certain issues may be handled without dismantling any components. This avoids the need to play about with the wiring and water connections.
- The ice maker stopped producing ice or produces tiny cubes
- Ice jam, excessive frost, or repeated clogs
- Water is leaking in the freezer or around the dispenser area
- Planning a replacement or deep cleaning
Tools and Safety Checks Before You Start
Unplug the refrigerator prior to remove ice maker from Samsung refrigerator models to avoid electrical risks and turn off the water supply before spillage takes place. Put a towel or shallow tray beneath the ice maker region in order to collect drips. Move slowly and maintain a stable position of the freezer door when working with internal parts so as not to overstretch the hinges.
Always use the proper Phillips screwdriver to prevent stripped screws and going around brackets excessively. Use gloves. It is important to capture a clear picture before removing the wiring harness to identify the position of the connector and clipping which can be easily reconstituted. When the water line appears broken, or a lot of ice has formed, then pause and think about professional assistance.

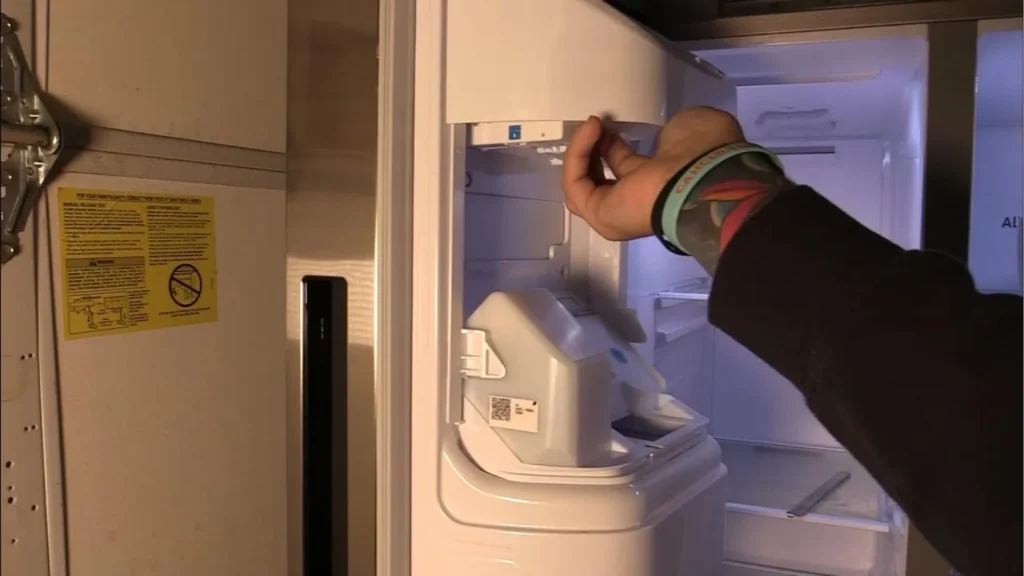

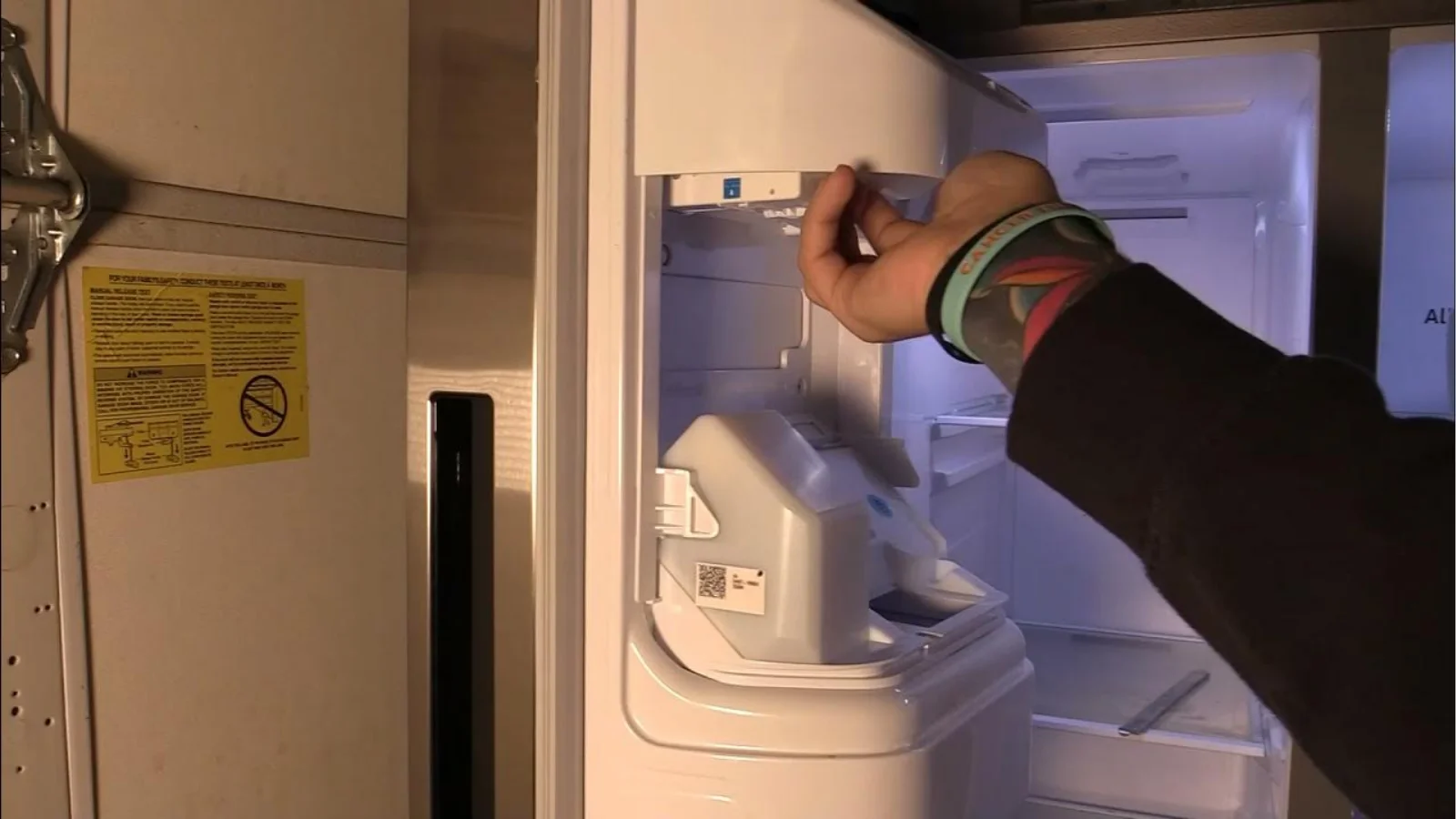

How to Remove the Ice Maker
To remove ice maker from Samsung refrigerator models safely, follow a careful sequence and avoid forcing any parts. Begin by turning power and water off, and proceed in a slow circle around covers, clips, and brackets. In case something is stuck,k then be sure to look into any hidden screws or ice, and then pressure should not be applied. Slowing down on the wiring can serve as a good protection against the wiring harnesses, and the water line will not leak.

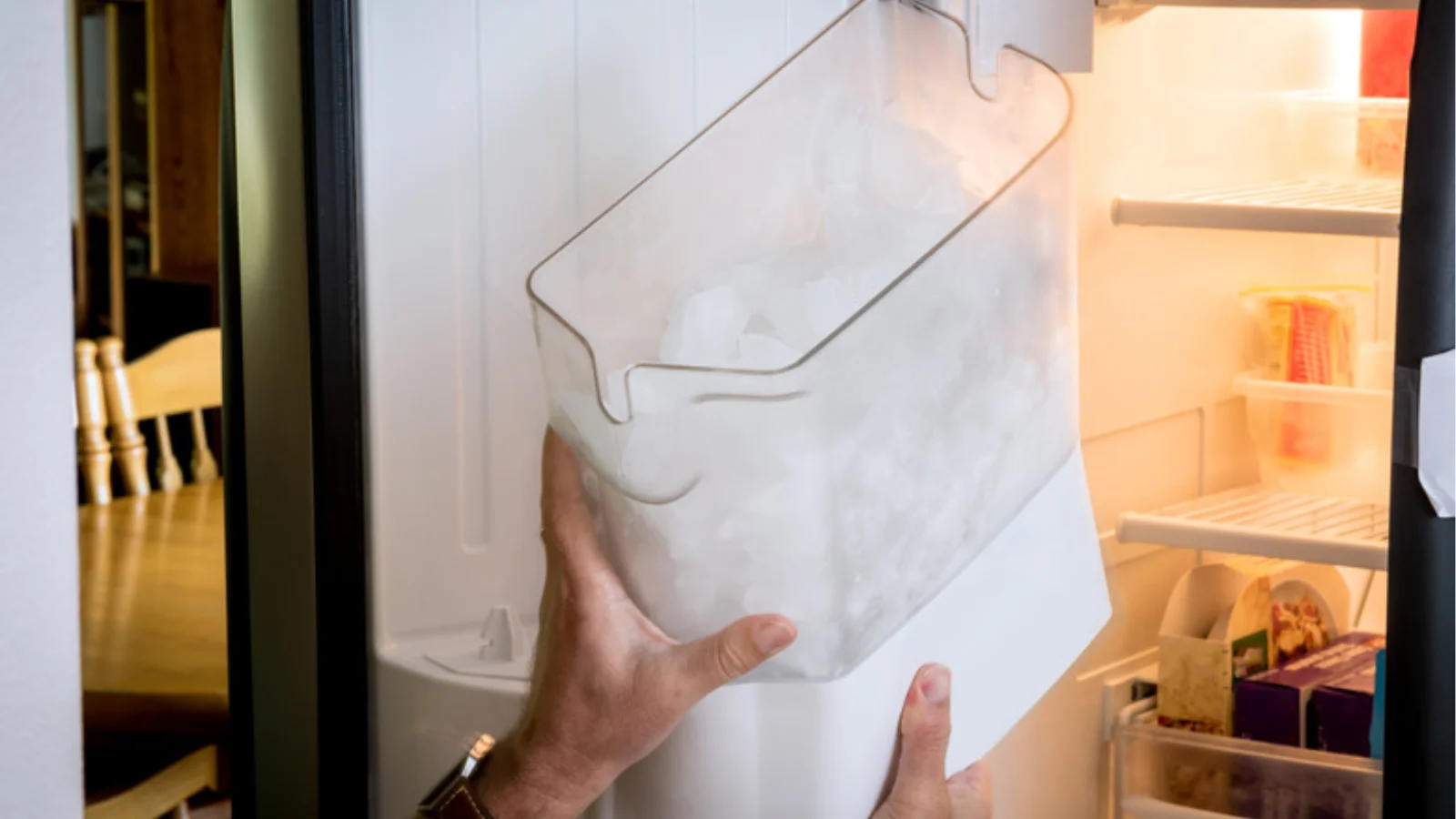

- Power off the fridge and shut off the water supply, then remove the ice bin.
- Open the ice maker cover and locate the screws and mounting points.
- Release the clip and disconnect the wiring harness gently—no pulling on wires.
- Remove the mounting screws/brackets and support the unit to prevent dropping.
- If a water line is attached, disconnect it slowly with a towel, then lift out the ice maker.
Common Mistakes That Cause Damage
One of the biggest mistakes when remove ice maker from Samsung refrigerator units is skipping the water shutoff or forgetting to unplug the appliance. This may cause leakage, an electrical hazard, or sudden water flow when the line of water is dislodged. Cracking of mounts, bending of brackets, or breaking the freezer liner can be caused by pushing the ice maker loose, particularly when it contains heavy ice.
The other mistake is to pull off the wiring harness, rather than to release the clip, which can break connectors, causing dispenser or sensor problems. Screws may also be stripped when using the incorrect screwdriver, and reassembling them once more becomes a challenge. In case of leaks, broken clips, or repeated dispenser issues later on, it is usually safe to have professional service to get it running again.
Ice Maker Removal Quick Checklist:
| Step | What to Do | Why It Matters |
| Power Off | Unplug refrigerator | Prevents electrical risk |
| Water Shutoff | Close the supply valve | Prevents leaks |
| Harness Release | Press the clip before unplugging | Avoids connector damage |
| Bracket Removal | Remove screws evenly | Prevents bending or cracking |
| Line Disconnect | Remove slowly with a towel | Reduces drips and stress |
When to Call a Professional for Samsung Ice Maker Repair
In case you observe visible damage to the wire, burning odor, or loosely connected wiring harness, halt. The same can be said to be the case to the extent that the line of water is frozen or you notice recurrence of leaks around the ice maker section following a reset. Samsung error codes might be linked as well to sensor and control problems that need to be diagnosed with the help of adequate tools.
It is also safer to make a phone call to a technician when your model has strange mounting patterns, fasteners concealed, or tight water lines running, which are easily broken. When the efforts to be removed result in cracking, stripped screws, or dispenser issues, expert assistance allows for avoiding additional damage and recurring failures.
Need Help With a Samsung Refrigerator Ice Maker Issue?
If you’re unsure about removing the ice maker or you’re dealing with leaks, error codes, or a frozen water line, it’s safer to get professional support. A trained technician can confirm the exact model setup, prevent damage to the wiring harness and water connections, and resolve the root cause—not just the symptoms.
This helps your refrigerator run reliably and reduces the chance of repeat ice maker problems. Schedule a refrigerator repair service at CaspiHomeService for an accurate diagnosis and safe repair.
Conclusion
The most basic steps to take before you start is turning off the refrigerator and turning off the water flow. Then unscrew the ice bin, lift the ice maker cover, and pull the wiring harness off by undoing the clip.
Unscrew mounting screws and brackets in an even manner, then disconnect the water line gradually with a towel to prevent excessive dripping. If you need to remove ice maker from Samsung refrigerator units due to leaks, damaged connectors, heavy ice buildup, or recurring failures, professional service is the smarter option.
Frequently Asked Questions
Do I need to turn off the water before removing the ice maker?
Yes—shut off the supply valve to prevent leaks when disconnecting the water line or moving the ice maker assembly.
Is it safe to remove the ice maker without unplugging the refrigerator?
No. Unplugging prevents electrical risk and stops accidental cycling while you disconnect the wiring harness, screws, and mounting brackets.
Why is my Samsung ice maker stuck and hard to remove?
Heavy ice buildup can freeze mounting points or brackets. Don’t force it; thaw gently and check for hidden screws first.
When should I call a professional instead of doing it myself?
Call a technician if you see wiring damage, persistent leaks, error codes, stripped screws, or a frozen water line you can’t release safely.
